Ultra high temperature — 120 °C without a boiler
Pressurised hot water up to 120 °C on R245fa, in two forms. Have warm process return to give up? The single water-to-water cycle is cheaper, simpler and more efficient. Have none? The cascade takes ambient air alone, down to −20 °C.
Is this the right range for you?
Two minutes here saves a wasted quotation. The boundaries below are the published ones, not sales judgement.
Yes, if all of these are true
- Your process needs 95 to 120 °C
- You are running a steam boiler for process heat
- Your duty starts at 25 kW
- You have warm water to give up — or you have not, and want the cascade instead
Look at another range if
- 80 °C is enough — see High Temperature Heat Pump
- 95 °C is enough — see Super High Temperature Heat Pump
Applications
Where this range is normally installed.
Key features
What is inside the cabinet, and why each of them is there.
Water outlet temperature up to 120 °C
Two ways to reach 120 °C
The single cycle is independent of ambient because it never sees air — but it needs a warm source. The cascade takes ambient air alone and does derate in winter: 25 kW at 20 °C, 15 kW at −20 °C on the SE-UHT-25V. Pick on what heat you already have.
Heating capacity from 25 kW
Starts small for this class, so a single process line can justify one.
Reliable scroll compressor technology
High efficiency brazed plate heat exchanger
Smart display controller with MODBUS
Models in this range
Two cycles, two answers. Every figure is taken from that model’s own technical data sheet.
Cascade cycle — from ambient air (C on the price list)
| Model | Heating capacity | COP | Hot water output | Dimensions (L×W×H) | |
|---|---|---|---|---|---|
| SE-UHT-25V | 25 kW | 2.2 | 215 LPH | 860 × 780 × 1780 mm | Datasheet ↓ |
| SE-UHT-45V | 45 kW | 2.2 | 390 LPH | 1550 × 780 × 1780 mm | Datasheet ↓ |
| SE-UHT-100V | 100 kW | 2.5 | 860 LPH | 2260 × 1030 × 2170 mm | Datasheet ↓ |

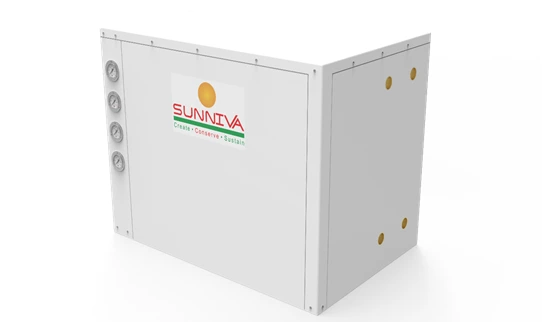

Single cycle — from waste heat (no C on the price list)
| Model | Heating capacity | COP | Hot water output | Dimensions (L×W×H) | |
|---|---|---|---|---|---|
| SE-WWUHT-25 | 27 kW | 2.93 | — | 860 × 780 × 850 mm | Datasheet ↓ |
| SE-WWUHT-50 | 49.7 kW | 2.99 | — | 1550 × 780 × 850 mm | Datasheet ↓ |
| SE-WWUHT-100 | 99.4 kW | 2.99 | — | 2250 × 1090 × 1050 mm | Datasheet ↓ |
Benefits
What this range does for the building, rather than what is in the box.
Directly replaces a steam boiler
The only heat pump class that can, and it does it without a flue, a fuel yard or a boiler licence.
Waste heat becomes the fuel
The single cycle runs on warm water you are already throwing away — process return, condenser water, another machine’s reject heat — and turns it into 120 °C. On that version the January number equals the June number, because it never sees the ambient at all.
Starts at 25 kW
One process line can justify the investment without waiting for a plant-wide project.
Size your process duty, then pick the cycle
Set the process temperature above 80 °C and the calculator opens a second section that sizes this range directly. It asks the one question the choice turns on — is there a warm water stream to feed the evaporator, or only ambient air — then selects the single cycle or the cascade accordingly, and puts the running cost beside the cost of keeping your boiler as a top-up.
Built to order
Options on this range, quoted per order. None of them is the standard build and none is included in the model table above — ask at enquiry and have it confirmed on the order acknowledgement.
- Water connection — Coupling type to suit the site — threaded, flanged or grooved.
- Casing — Stainless steel or powder-coated finish.
- Circulation pump — Can be built into the unit instead of being fitted in the plant room.
- Condenser — Stainless steel or copper, in place of the standard build.
And what every Sunniva heat pump gives you
True of the whole range, not just this one.
- Up to 75 % off water heating against electric, LPG or PNG
- Quick payback and strong return on investment
- The longest product life of any common water-heating technology
- Silent operation
- Hot water round the year, independent of sunlight
- Lower carbon emissions
- Negligible maintenance cost
- Saves space against a boiler or a solar-thermal field
Common questions
The ones our engineers are actually asked.
Is it really a steam replacement?
How is it independent of the ambient?
When will full data be available for the ultra high temperature range?
Manuals and related ranges
Performance figures are published test data at the stated conditions and are not a guarantee for a specific installation. Draw-off pattern, pipe runs, water quality, static head and local code all affect the final selection — confirm with Sunniva Encon LLP before ordering.
