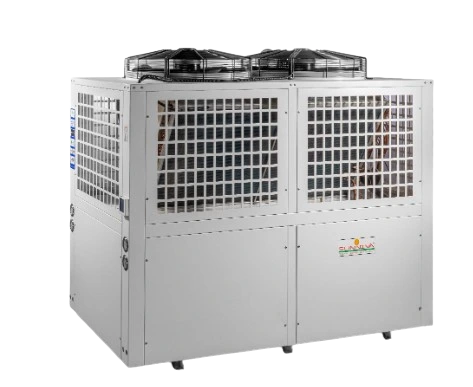

Pool heat pumps with a titanium exchanger
Applies a titanium heat exchanger and heat pump technology to move heat from the surroundings into pool water. Especially suitable for commercial swimming pools, spas and physiotherapy pools that have to hold temperature all year.
Is this the right range for you?
Two minutes here saves a wasted quotation. The boundaries below are the published ones, not sales judgement.
Yes, if all of these are true
- A pool, spa, jacuzzi or therapy pool
- You want it held at temperature rather than heated occasionally
- Water up to about 45 °C is enough
- You are heating with electricity, diesel or gas today
Look at another range if
- It is sanitary hot water, not a pool — see Commercial Heat Pump
- Your winter drops below 5 °C — see EVI Heat Pump
Applications
Where this range is normally installed.
Key features
What is inside the cabinet, and why each of them is there.
Titanium tube in PVC-shell heat exchanger
Chlorinated water destroys ordinary exchangers. Titanium is the only material that survives it indefinitely, and it is why a pool machine costs more than a hot water machine of the same capacity.
American Copeland / Panasonic scroll compressor
Heating in winter, cooling in summer
Optional. In much of India the summer problem is a pool that is too warm to be refreshing.
Available in the EVI range for cold climates
Intelligent defrosting
Optional.
Smart touch control and WiFi
WiFi optional. MODBUS for building management systems.
Models in this range
Every figure below is taken from that model’s own technical data sheet, at its rated test condition. Full performance at every published ambient is in the PDF.
| Model | Heating capacity | COP | Hot water output | Dimensions (L×W×H) | |
|---|---|---|---|---|---|
| SE-SP-25U | 25 kW | 6.7 | — | 800 × 800 × 1110 mm | Datasheet ↓ |
| SE-SP-35U | 35 kW | 6.8 | — | 800 × 800 × 1110 mm | Datasheet ↓ |
| SE-SP-50U | 50 kW | 6.7 | — | 1450 × 890 × 1110 mm | Datasheet ↓ |
| SE-SP-65U | 65 kW | 6.8 | — | 1450 × 890 × 1110 mm | Datasheet ↓ |
| SE-SP-95V | 90 kW | 6.9 | — | 1850 × 950 × 1635 mm | Datasheet ↓ |
| SE-SP-120V | 110 kW | 6.9 | — | 2250 × 1090 × 1785 mm | Datasheet ↓ |
| SE-SP-140V | 140 kW | 6.6 | — | 2250 × 1090 × 1785 mm | Datasheet ↓ |
| SE-SP-240V | 220 kW | 6.9 | — | 2250 × 2100 × 1800 mm | Datasheet ↓ |
Benefits
What this range does for the building, rather than what is in the box.
The exchanger outlasts the pool
Titanium resists pool-chemical corrosion, which is the single largest cause of early failure in pool heating.
A cover is worth more than a bigger machine
Evaporation is over half the loss on most pools. Our calculator shows exactly what a cover saves you in rupees.
Energy saving with WiFi and MODBUS
Schedule around the tariff, and let the building system see the plant.
What a cover actually saves
Evaporation is normally over half the total loss from an outdoor pool — more than convection and radiation together. A cover cuts evaporation to about 5 % while it is on, and convection and radiation to about 35 %. On most pools that is the single biggest saving available, and it costs a fraction of a bigger machine. The calculator puts your own number on it.
Size your pool in about a minute
Set the length, width and depth, tell it indoors or outdoors, covered or open, and it returns the heat-up load and the holding load separately, the model that covers both, and what a cover is worth.
Built to order
Options on this range, quoted per order. None of them is the standard build and none is included in the model table above — ask at enquiry and have it confirmed on the order acknowledgement.
- Water connection — Coupling type to suit the site — threaded, flanged or grooved.
- Casing — Stainless steel or powder-coated finish.
- Circulation pump — Can be built into the unit instead of being fitted in the plant room.
And what every Sunniva heat pump gives you
True of the whole range, not just this one.
- Up to 75 % off water heating against electric, LPG or PNG
- Quick payback and strong return on investment
- The longest product life of any common water-heating technology
- Silent operation
- Hot water round the year, independent of sunlight
- Lower carbon emissions
- Negligible maintenance cost
- Saves space against a boiler or a solar-thermal field
Common questions
The ones our engineers are actually asked.
Indoor or outdoor — does it change the machine?
How long to heat the pool from cold?
Will it work through a north Indian winter?
Does it need a separate filter pump?
Manuals and related ranges
Performance figures are published test data at the stated conditions and are not a guarantee for a specific installation. Draw-off pattern, pipe runs, water quality, static head and local code all affect the final selection — confirm with Sunniva Encon LLP before ordering.
