Descripti​on

This series of heatpumps can generate hot water at 80°C at high COP. These heatpumps are ideal for industrial applications and processes requiring water at high temperature.

                                   ​

MODBUS Communication               Environment                                  High

                                                    Friendly refrigerant                      Temperature

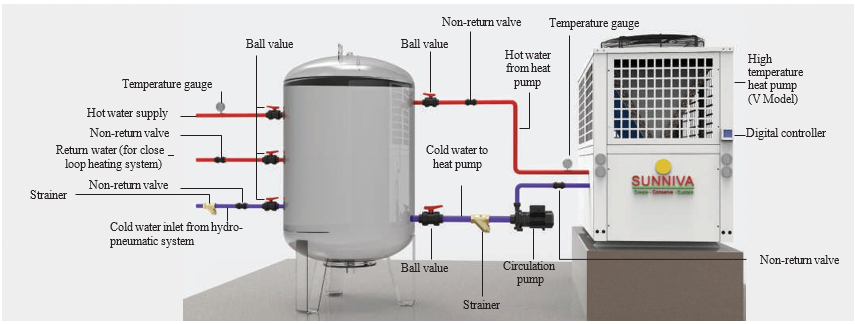

Schematic Diagram

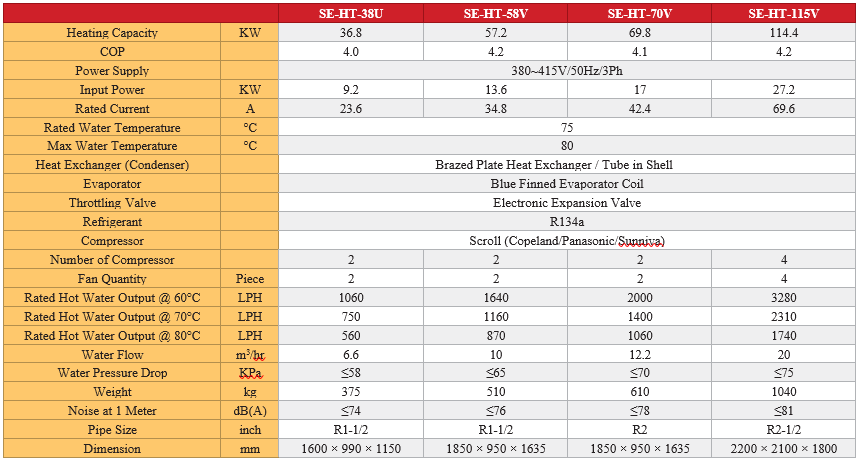

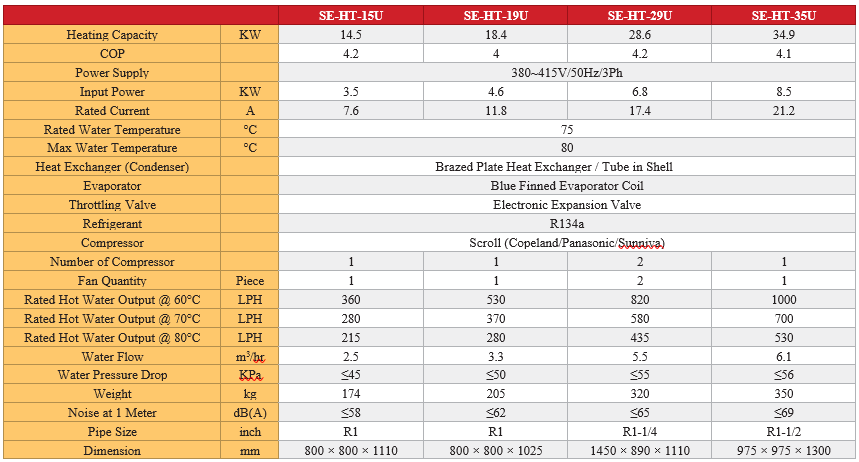

Features & Specifications

Features

⚫                Water outlet temperature up to 75/80°C

⚫                Capacity available up to 200 KW

⚫                Wide ambient range 7-43°C

⚫                Environment friendly green refrigerant

⚫                Protective system with thermostat and pressure switch

⚫                Overload protection

⚫                Smart touch

Testing Condition: Ambient Temp. (DB/WB)=20°C/15°C, Inlet Water Temp. = 55°C, Outlet Water Temp. = 60°C (E.T. 10°C./ C.T. 65°C)
