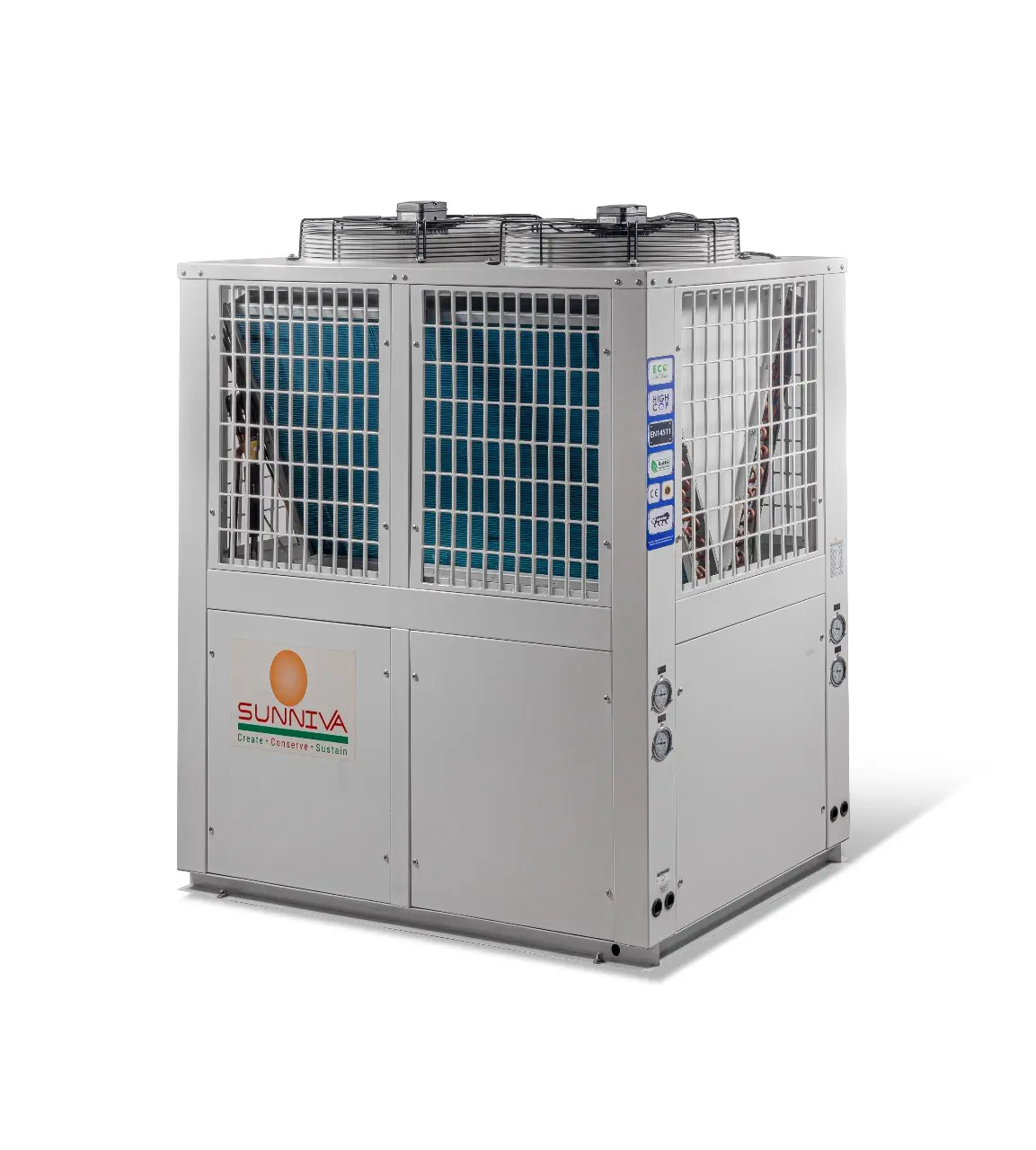

Commercial Heat Pumps

Description

This series is splendid for centralized hot water system and is capable of generating hot water upto 55°C It is the ideal hot-water solution for Hotels, Hospitals, Resorts, Boarding Schools and Apartment Complexes.

   Silent Operation               Less maintenance                   Temperature

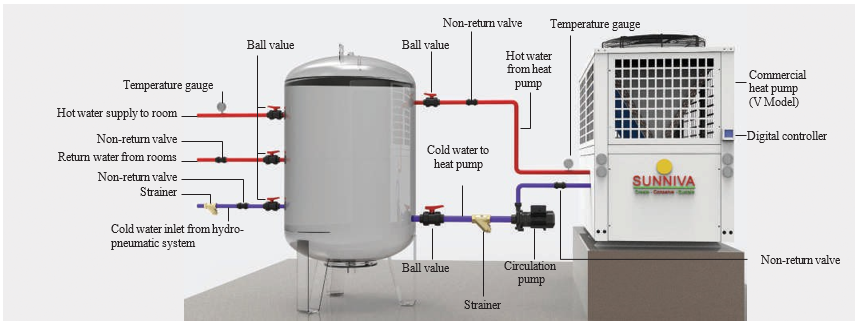

Schematic Diagram

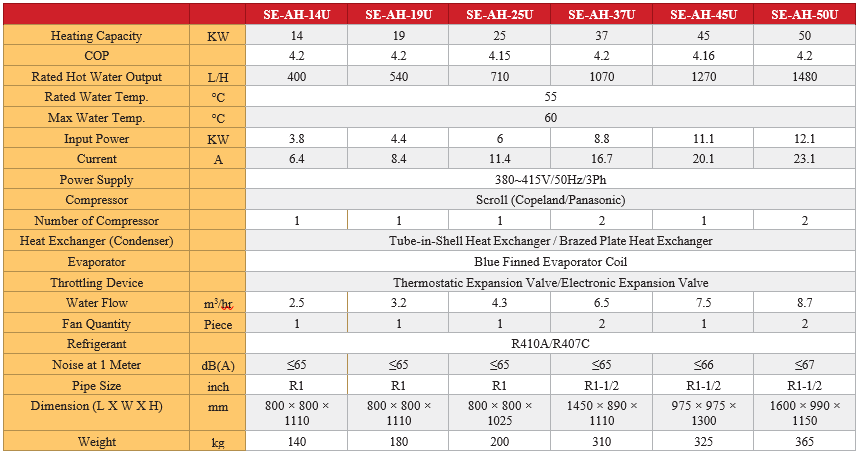

Features & Specifications

Features

⚫                American Copeland/Panasonic scroll compressor

⚫                Automatic defrosting (optional)

⚫                Super intelligence

⚫                Low noise and vibration

⚫                Stable running, safe and reliable

⚫                Smart-touch control

⚫                Anti-corrosive coating

⚫                High Pressure /Low Pressure Protection feature

Testing Condition: Ambient Temp.(DB/WB) = 30°C/25°C, Inlet Water Temp.= 25°C, Outlet Water Temp. = 55°C (E.T. = 10°C / C.T. = 60°C)
